Storage is an energy infrastructure integrating the functions of seasonal peak regulation, emergency gas supply and national energy strategic reserve. As a key equipment supplier of compressor units, Nancal Electric has excellent on-site service technology and fast response, which has been highly praised by Petrochina Southwest Oil and gas Field Huangcaoxia Gas Storage Construction Project Department and Sichuan Huacheng Supervision Company. ​

Nancal HVVF series drives can be used in constant torque control such as conveyor. The key control performance is to realize the coordination between multi-motors.

Nancal HVVF series MV AC drives used in Sinoma cement Industry Cement Object The end user is Lanxi South Cement, loading is Kiln end fan.The air volume need to be changed according to the working situation, Medium voltage VFD can adjust the motor speed on time in order to achieve the target of process

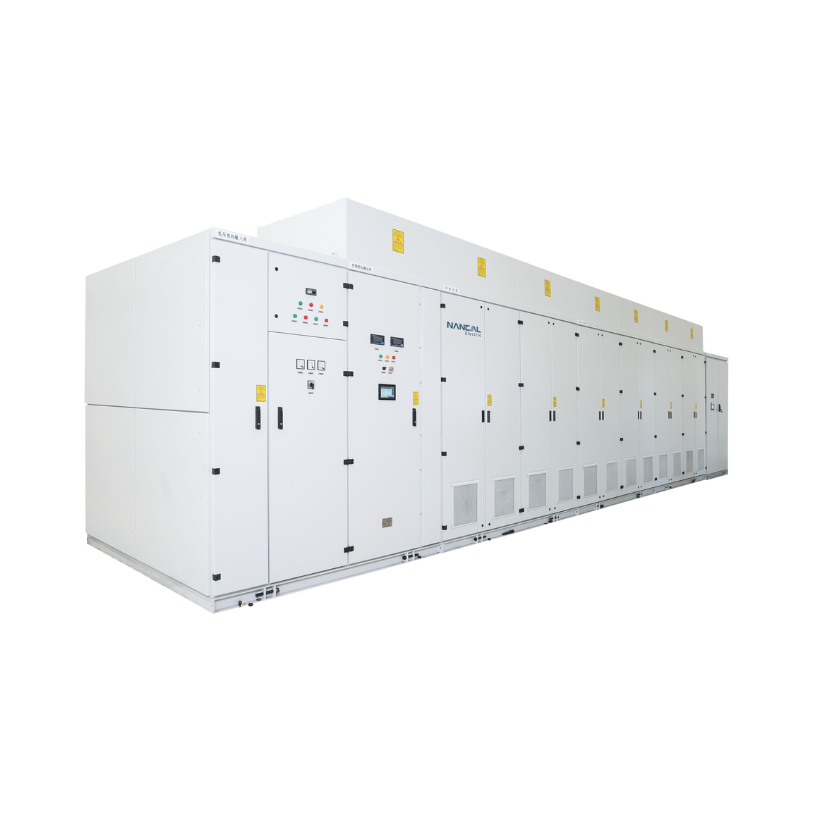

Nancal MV FI used in pipeline Yongqing station Industry Oil and gas Overview Project name: China-Russia east pipeline Yongqing station Loading: Compressor Nancal products: 2sets of 10kV 20MVA water cooling VFD Input voltage: 10kV Output voltage： 10kV Rated capacity: 20MVA water cooling

Nancal MV FI used in pipeline Heihe station Industry Oil & gas Overview Project name: The first station of Sino-Russia pipeline, Heihe Loading: Compressor Nancal products: 4 sets of 10kV 23MVA water cooling VFD Model: NC HVVF 10/10-23000LO Input voltage:10kV Output voltage: 10kV Cooling method: Water cooling

Nancal NC3S Series medium voltage soft starters used in Zhongnanshan Tunnel 18.02km, the longest highway tunnel in Asia 36sets Medium voltage soft starters Voltage: 6kV Current: 140A Loading: exhaust fans

Special Requirements1) High accuracy 2) 6-pulse IGBT rectifier OverviewInput voltage: 380VOutput voltage: 480VRated capacity: 355kW

IndustryTest Bench-Wind TunnelObjetciveThere are totally seven units of compressors and two bus bars at site,3*1000kW motors are on busbar I, 4*1300kW motors are on busbar II.

Wenchang Platform-Wet Gas CompressorIndustryOffshore-Drilling platformObjectiveThe project is located on a drilling platform in the South China Sea. The natural gas extracted from the wellhead is pressurized by the compression system and dehydrated in the dehydration system.

Nancal Electric HVVF series converter used in sewage treatment plant

Nancal EVFD series industrial AC drives used in Paper factory LoadingsNet machine, squeeze machine, dryer, calender, rolling machine etc…

IndustryMiningObjectiveAccording to the environmental requirements, the offgas in coking plant needs to be desulfurized and denitrified before discharged.There are 4 induced draft fans on the customer site to guide the coking flue gas to the desulfurization tower and denitrification reactor.

Nancal NC3S series 6kV 140A solid soft starter used in mining The end user is the top mining company located in Azerbaijan. Loading: exhaust fans Voltage: 6kV Current: 140A Quantity: 5Units Reduce the motor stating current from 7times to 3.5times of the rated current.

Nancal Low voltage industrial AC drives used in Ningbo steel factoryNC EVFD low voltage industrial drive in Main Rolling Mill of a Stainless Steel Plant in Ningbo Shanghai Nancal Electric Co., Ltd provides overall solution and project implementation.

NC EVFD industrial AC drives used in Jieyang steel Loadings SG-650 4-roll reversible cold rolling mill TargetRoll the 6mm thickness steel plate to 0.18mm sheet

Industry MetallurgyObjective Binxin Steel is one of the leading metallurgy company established in 2008. In this project, there were two units of 10kV 6200kW sintering fan with synchronous motor.

IndustryPetrochemical ObjectiveIn petrochemical industry, the one of main energy consuming equipment is the pump. The traditional drive solution can only run at the grid with fixed speed through the valve throttling to hydraulic coupling for speed regulation.

Nancal NC3S soft starter used in CNPC changqing oilfield 5th branchProject time: 2019Voltage: 10kV Current: 250AQuantity: 5Units

Medium voltage frequency inverter used inTarim oil filed Loading: Centrifugal propane compressor Motor information: 10kV 4500kW 302A Asynchronous motor

Shanghai Nancal Electrical will bring a new generation of fully digital control platform and the latest super high-power water-cooled high-voltage inverter power unit to participate in the exhibition. We sincerely invite and welcome customers and partners to come and visit.
