NC SPC Series

Smart Power Quality Correct Devices

400V

35kvar-100kvar

Three-phase balancing

DOWNLOAD BROCHURE

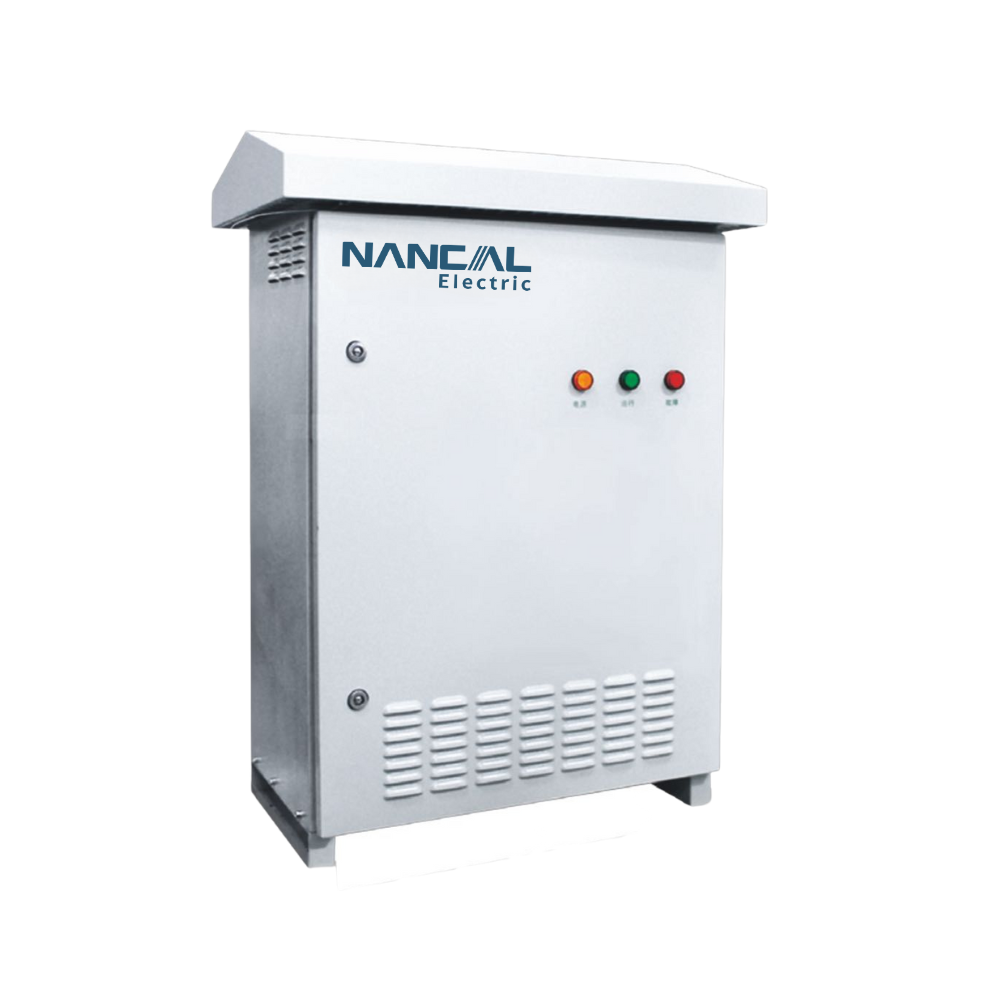

Nancal Electric NC SPC Series

Smart Power Quality Correct Device

Based on SVG, NC SPC Series Smart Power Quality Correct Device (SPC) is specially designed to improve the power quality of the distribution network with the functions of three-phase unbalance compensation, rapid reactive power regulation, and system voltage stabilization.

Reactive Compensation

NC SPC detects load current through an external current transducer (CT) and analyzes the reactive component of load current by the DSP controller. Then it controls the IGBT inverter to generate reactive current and compensate load reactive current to meet the target of line power factor.

Three-phase Balancing

NC SPC detects the load current through an external current transducer (CT), analyzes whether the system is balanced or not, and also calculates the required SPC current, and sends the signal to the IGBT. Then the unbalanced current is transferred from the high-current phase to the low-current phase. Finally, the three-phase current is balanced at the source site.

Voltage Support

The NC SPC samples the voltage at the compensation point and sends the voltage signal to the DSP controller for comparison with the set value. When the voltage exceeds the Umax value, the NC SPC generates an inductive current to reduce the voltage. When the voltage is below the Umin value, the NC SPC outputs capacitive current to increase the voltage. Finally, the NC SPC stabilizes the voltage in the normal range.

3 Phase Unbalance Compenstation
Reactive Power Compensation
Harmonic
Compenstaion
High Protection
Suitable for Outdoors

Advantages

Multiple functions
High IP class
Remote monitor
Stable operation
Auto-reset and restart can be set

Features

After compensation, phase unbalance rate<3%
Power factor up to 0.99
Modular design, easy for installation and maintenance

Abundant Compensation Functions

3 phase unbalance< 3%
Voltage regulation
PF>0.99, efficiency>97.5%
Advanced System Performance

Safety protection mechanism
Fault self-diagnosis, self-recovery
Stable and reliable operation
Safety and Reliability

Advanced IGBT chip
Texas Instrument DSP chip, fast and reliable
Perfect protection
Flexible Application

Modular design
Small size&Expandable
Easy installation and maintenance
User-Friendly

Standard 7-inch colorized touchscreen
Graphic interface, displaying various parameters
Easy operation
Remote monitoring and control
Energy Saving

Low loss: automatic hibernation/awakening
Low noise: intelligent variable speed cooling fan

More Applications

More >>

Active Power Filter (APF. 03) used in Pakistan M/s Zaman Textile Mills

M/s Zaman Textile Mills in Pakistan400V 100A APF wall mount + 400V 150A APF3 sections in total. The harmonic distortion rate before compensation is 38%, 24% and 32% respectively, and after compensation, they are all around 5%.The operation is stable and the customer is very satisfied.
Nancal Electric Ensures Stable, High-Quality Power for Pakistani Factories

Nancal Electric's Active Power Filter (APF) has been successfully deployed at a large packaging factory and a textile plant in Pakistan. Following the implementation of the APF, harmonic levels at the facilities were significantly reduced, meeting relevant power quality standards. The power supply environment has improved markedly, leading to a substantial increase in the stability and continuity of production lines. Nancal remains committed to providing overseas customers with efficient and reliable power quality solutions, supporting their industrial upgrade efforts.
Active harmonic filter used in Daqing data center

Nancal Electric APF used in Daqing Data Center
Power quality products used in Pharmacy

Nancal Power quality products used in Pharmacy, active power filter and static var generator
APF used in Semiconductor Materials Manufacturing

APF used in semiconductor materials manufacturing End user: A leading company producing monocrystalline silicon rod, polycrystalline ingot, monocrystalline silicon sheet, polycrystalline silicon sheet.There are totally three phase of this project. Total capacity is 6000Amps
APF used in Offshore Drilling Platform

Particular requirements for APF from offshore drilling platforms.Offshore drilling platforms have special requirements for equipment in terms of protection level, equipment dimension, cooling method and safety.
Active Power Filter used in new energy industry

Active power filter used in new energy industryIndustry: Solar farm Voltage: 400V Products: 100A, 200A,400A Active harmonic filters
Active Power Filter used in Dubai Shopping Center

Nancal Electric Active Power Filter used in Dubai Shopping Mall Nancal 400V 200A &160A Active power filters.
SVG used in Sinoma cement factory

Nancal NC SVG series static var generators used in Sinoma South cement factories. Nancal products: NC SVG-4L-400-100 1Unit NC SVG-4L-400-250 6Units Totally 7Units. Function:1) Used to compensate reactive power 2) Eliminate the 5th and 7th harmonics
Nancal Electric Power Quality Products Used in Hohhot Petrochemical

Nancal Active Power Filter used in Hohhot Petrochemical factory
APF Used in New Energy Bus Charging Station

Active power filter used in EV bus station 6stations, 12units of Nancal 80A Active power filters. Main function: used to eliminate 5th and 7th harmonics which generated by the EV chargers.
