NC SVGC Series

Hybrid Static Var Generator

400V/480V/690V

100kvar-600kvar

Reactive compensation

DOWNLOAD BROCHURE

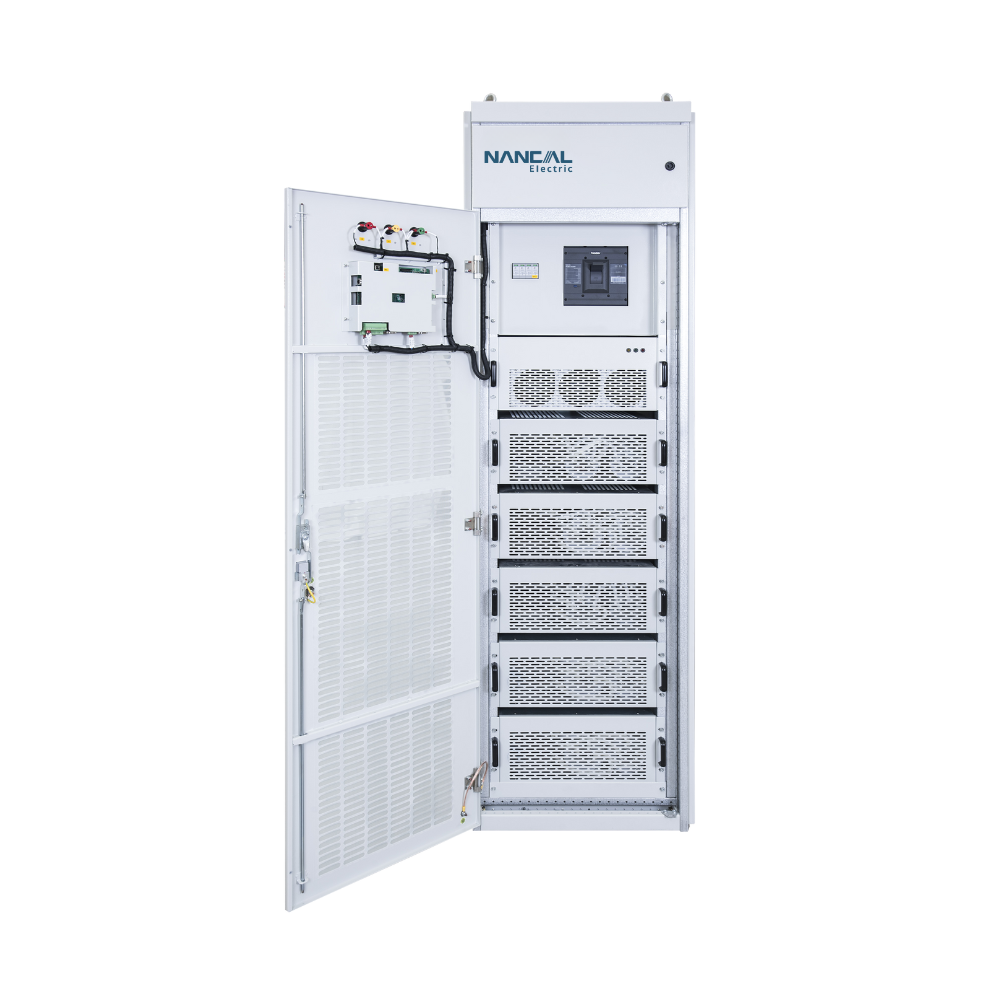

Nancal Electric NC SVGC Series

Hybrid Static Var Generator

NC SVGC (Hybrid Var Compensator) integrates TSC (Thyristor Switched Capacitor) and SVG in a modular design with dynamic compensation functions, such as reactive power compensation, harmonic compensation, voltage fluctuation, and load unbalance.
SVGC has a high performance-to-cost ratio with no risk of over- or under-compensation.

Precise Compensation
High Power Factor
No over-compensation No Under-compensation
Cost-effective
Easy Operation

Advantages

High performance-to-cost ratio
Precise compensation, P.F.>0.99
No over- or under-compensation

Features

Modular design, easy for expansion
Can be used together with AFP
On-time tracking, quick response

Abundant Compensation Functions

Fast stepless compensation
High precision reactive compensation, PF>0.99
Reactive compensation range: -1~1 (adjustable)
No overcompensation, undercompensation, resonance, capacity decay phenomenon
Current harmonic compensation
Advanced System Performance

3-level topology structure
DSP+FPGA, high-speed digital control
Automatic resonance avoidance, automatic limiter without overload
Protection: over-voltage, over-current
over-temperature, and etc.
Communication: Ethernet, RS485, and etc.
Safety and Reliability

Advanced IGBT chip
Texas Instrument DSP chip, fast and reliable
Perfect protection
Flexible Application

Modular design
Small size&Expandable
Easy to installation and maintenance
User-Friendly

Standard 7-inch colorized touch screen
Graphic interface, displaying various parameters
Easy operation
Energy Saving

Low loss: automatic hibernation/awakening
Low noise: intelligent variable speed cooling fan

More Applications

More >>

Active Power Filter (APF. 03) used in Pakistan M/s Zaman Textile Mills

M/s Zaman Textile Mills in Pakistan400V 100A APF wall mount + 400V 150A APF3 sections in total. The harmonic distortion rate before compensation is 38%, 24% and 32% respectively, and after compensation, they are all around 5%.The operation is stable and the customer is very satisfied.
Active harmonic filter used in Daqing data center

Nancal Electric APF used in Daqing Data Center
Power quality products used in Pharmacy

Nancal Power quality products used in Pharmacy, active power filter and static var generator
APF used in Semiconductor Materials Manufacturing

APF used in semiconductor materials manufacturing End user: A leading company producing monocrystalline silicon rod, polycrystalline ingot, monocrystalline silicon sheet, polycrystalline silicon sheet.There are totally three phase of this project. Total capacity is 6000Amps
APF used in Offshore Drilling Platform

Particular requirements for APF from offshore drilling platforms.Offshore drilling platforms have special requirements for equipment in terms of protection level, equipment dimension, cooling method and safety.
Active Power Filter used in new energy industry

Active power filter used in new energy industryIndustry: Solar farm Voltage: 400V Products: 100A, 200A,400A Active harmonic filters
Active Power Filter used in Dubai Shopping Center

Nancal Electric Active Power Filter used in Dubai Shopping Mall Nancal 400V 200A &160A Active power filters.
SVG used in Sinoma cement factory

Nancal NC SVG series static var generators used in Sinoma South cement factories. Nancal products: NC SVG-4L-400-100 1Unit NC SVG-4L-400-250 6Units Totally 7Units. Function:1) Used to compensate reactive power 2) Eliminate the 5th and 7th harmonics
Nancal Electric Power Quality Products Used in Hohhot Petrochemical

Nancal Active Power Filter used in Hohhot Petrochemical factory
APF Used in New Energy Bus Charging Station

Active power filter used in EV bus station 6stations, 12units of Nancal 80A Active power filters. Main function: used to eliminate 5th and 7th harmonics which generated by the EV chargers.
