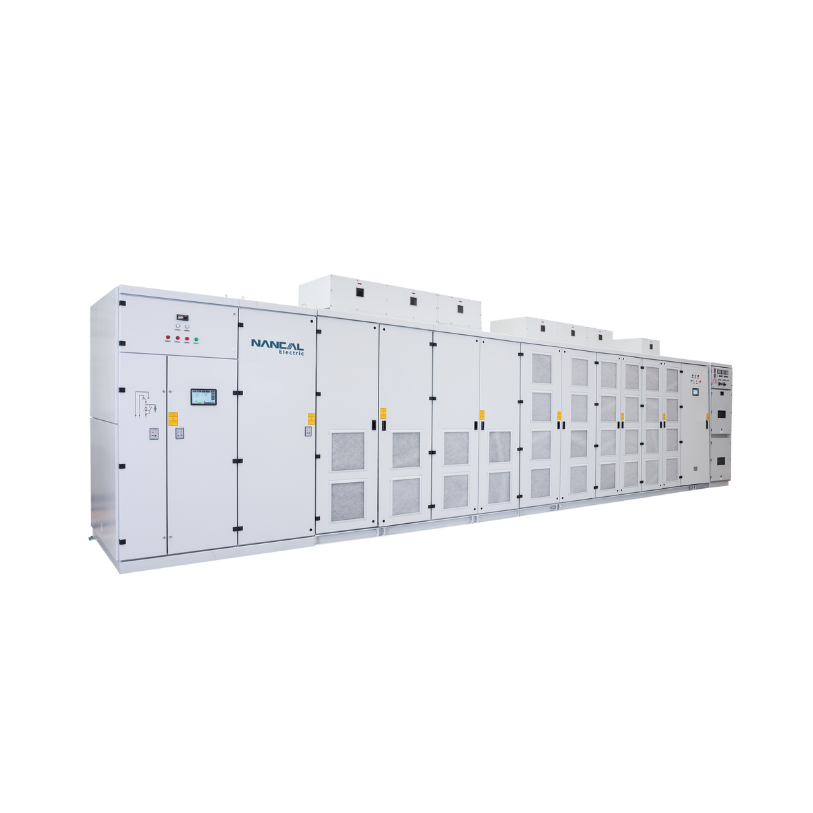

NC-HVVF2000
         HVVF Air Cooling Medium Voltage Drives
         200kW -15000kW
        Air Cooling
        Front access
               High-Performance Vector Control
             High Reliability
             Front Access, Easy Maintenance

            DOWNLOAD BROCHURE
HVVF Air Cooling Medium Voltage Drives

NC HVVF Air Cooling Medium Voltage Drives is a voltage source inverter based on IGBT and cell series multilevel PWM technology.
Characterized by low harmonics and high efficiency.
Achieve output voltage of up to 18kV with perfect sinusoidal waveform, directly driving almost all kinds of MV motors without a step-up transformer.
  • low harmonic vfd
    Low Harmonic
    Complied with IEEE519-1992
  • high power factor vfd
    High Power Factor​​​​​​​
    P.F.: 0.95~0.99
  • THDI-TEST

     High Control Accuracy

    With speed sensor
  • 24h

     Outstanding Reliability ​​​​​​​

    Continuous working without trip
 Features:
  • High-Performance Vector Control
  • High reliability
  • Front access for easy maintenance
  • User-friendly HMI,user-selectable parameters displayed on the main screen
  • Motor-friendly output, no additional heating and torque pulsation to the motor
  • Strong resistance to voltage disturbance, ensuring continuous operation under line fluctuations
  • Low voltage / Zero voltage ride through
  • Spinning load pickup
  • Auto bypass with Neutral point shift technology (patented), bypassing faulty cells and ensuring maximum output without trip
  • Multiple motors soft start/stop with a single unit, providing stable current transfer from the grid to the inverter or vice versa during transition.
  • Enhanced braking technology for large motors

​​​​​​​Input
Voltage: 3 Phase, 2.3kV-35kV
Frequency: 50Hz/60Hz±10%
Power Factor: >0.95
Harmonic: THDi<2%
Output
Voltage: 2.3kV-18kV
Frequency: 0-180Hz
Power: 200kW-15000kW
Overload Capacity: 120% 1min; 150% Immediate trip
Motor Type
Asynchronous Motor
Permanent Magnet Motor
Brushless Excitation Mtor
Brush Excitation Motor
Structure
Protetcion: IP31 Standard
Seismic Grade: 8-Level
Cable Entry: Top or Bottom
Front Access
frequency drive-tarim
Tarim Oil Field
10kV 4500kW
converter Nancal
Binxin Steel

10kV 6200kW

VFD for cement
Sinoma Cement

10kV 3050kW

More Applications
